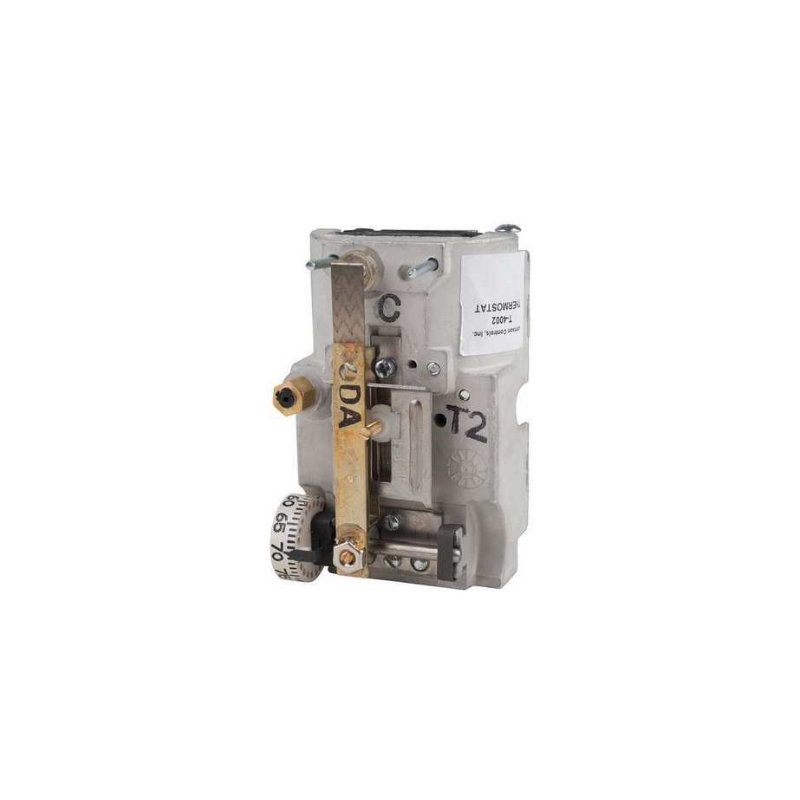

Pneumatic Thermostat, DA, Single Temp, Heat/Cool, 2 Pipe

0012332659
Rating

Pneumatic Thermostat, DA, Single Temp, Heat/Cool, 2 Pipe



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Description

Element Type: Bi-metal    Mounting Style: Horizontal

Heating / Cooling: Heating and Cooling       Throttling Range: 1 to 5 psi

No. of Pipes: 2 Pipe            Reverse Acting / Direct Acting: Direct Acting

1 Pipe / 2 Pipe: 2 Pipe        Depth: 1-3/4"

Single Temp. / Dual Temp.: Single Temperature       Temperature Output Settings: Single Temperature

Thermostat Application: Heating and Cooling           Max. Air Pressure: 25 psi

Air Connections: 5/32" Barb           Width: 3-1/8"

Height: 2-3/32"   Temp. Control Range: 55 Degrees to 85 Degrees F

Air Consumption: 20 scim                Max. Ambient Temp.: 135 Degrees F

Control Air Pressure: 13 to 25 psig                Action Type - Pneumatic Thermostats: Direct Acting

Item: Pneumatic Thermostat         Country of Origin (subject to change): Mexico
